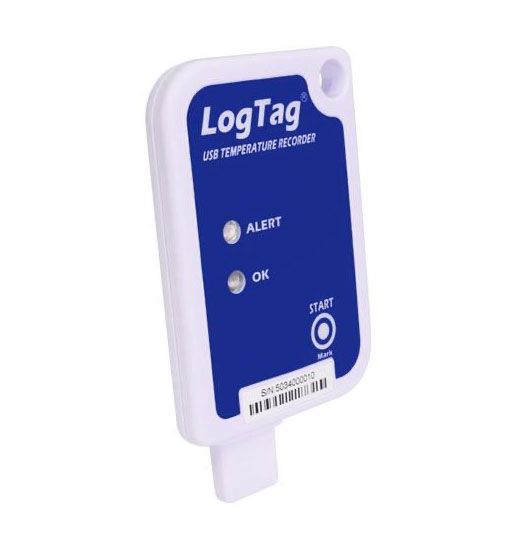

USRIC-4 SINGLE-USE USB TEMPERATURE LOGGER

FEATURES

• Integral USB connector – no separate Interface Cradle required.
• Suitable for multiple independent receivers, clinical trials and last-mile distribution.
• User configurable options – no need to buy a special recorder for each application.
• 4000 reading memory capacity with 6 months operating life from the time of configuration.

BROCHURE

SPECIFICATIONS

Product Model	USRIC-4.
Sensor Measurement Range	-30°C to +60°C (-22°F to +140°F).
Operating Temperature Range	-30°C to +60°C (-22°F to +140°F).*
Storage Temperature Range	0°C to +40°C (32°F to +104°F).
Rated Temperature Reading Accuracy	Better than ±0.5°C (±0.9°F) for -5°C to +30°C (23°F to +86°F). ±0.8°C (±1.5°F) or better for measurements in other areas of rated range. Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below. Accuracy figures can be improved by recalibration.
Rated Temperature Reading Resolution	Less than 0.1°C/F. Please see the Rated Native Resolution chart below. LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®.
Sensor Reaction Time	Typically less than 5 minutes (T90) in moving air (1m/s).
Recording Capacity	3937 temperature readings. 14 days @ 5min logging, 41 days @ 15min logging.
Sampling Interval	Configurable from 1 minute to 18 hours.
Logging Start Options	Push button start or specific date & time.
Alarms	1 configurable upper and 1 configurable lower alarms.
Recording Indication	Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator.
Download Time	Typically less than 4 seconds for full memory (3937 readings), depending on computer or readout device used.
Environmental	IP64 with USB cap fitted.
Power Source	CR2032 3V LiMnO2 Battery (Fixed).
Battery Life	2 years storage, followed by 6 months normal use.
Real Time Clock	Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
Connection Interface	USB 2.0, A-type plug
Software	LogTag® Analyzer 2.5 or higher
Size	93mm(H) x 54.5mm(W) x 8.6mm(T).
Weight	30g.
Case Material	Polycarbonate.
Footnote	*(-30°C to +60 °C applies to Loggers with serial numbers 5x34x33580 or greater. Loggers with serial numbers prior to this have an operating temperature range of -25°C to +60°C).
Compliance and Certifications
