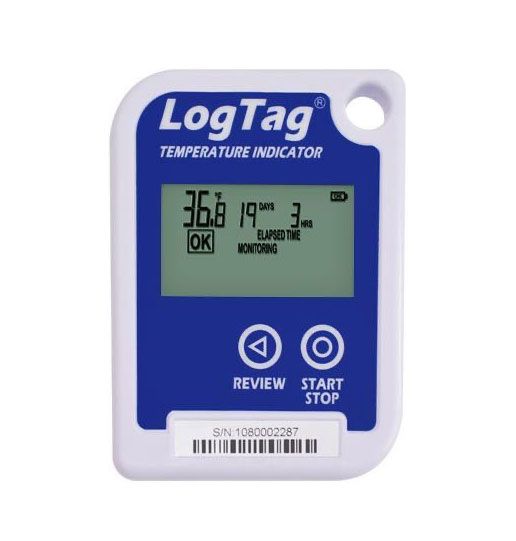

TIC20 TEMPERATURE INDICATOR WITH 20 DAY DISPLAY


SKU: TIC20

FEATURES

  • At-a-glance summary with ‘OK’/’Reject’ alarm status.
  • 4 freely configurable upper/lower temperature alarms.
  • Review statistical data on device for up to 20 days prior.
  • Download of statistical data via optional interface.

BROCHURE

SPECIFICATIONS

Product Model TIC20.
Sensor Measurement Range -30°C to +60°C (-22°F to +140°F).
Operating Temperature Range -30°C to +60°C (-22°F to +140°F).
Storage Temperature Range -30°C to +65°C (-22°F to +149°F).
Rated Temperature Reading Accuracy Better than ±0.5°C for -10°C to +40°C (+14°F to +104°F).
Better than ±1.0°C for -30°C to -10°C (-22°F to +14°F).
Better than ±1.0°C for +40°C to +60°C (+104°F to +140°F).
Actual performance is typically much better than the rated values.
Accuracy figures can be improved by recalibration.
Rated Temperature Reading Resolution Less than 0.1°C for -30°C to +60°C.
Sensor Reaction Time Typically less than 7 minutes (T90) in moving air (1m/s).
Recording Capacity Minimum & maximum temperature for each of the 20 days.
1st activation of each alarm for each day including trigger time and duration of each excursion.
Please note the TIC20 does not store each individual temperature reading taken.
Sampling Interval 1-15 minutes.
Logging Start Options Push button start or specific date & time.
Start Delay Start delay of 1-99 minutes.
Recording Indication Alarms are displayed on a custom LCD.
Environmental IP64.
Power Source CR2032 3V LiMnO2 Battery (Fixed).
Battery Life Minimum storage life of 5 years before ‘start’.
Monitoring period: 20 days.
Minimum accessibility (display) period of 6 months after ‘stopped’.
Real Time Clock Built-in real time clock.
Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
Size 73mm(H) x 54.5mm(W) x 8.6mm(T).
Weight 30g.
Case Material Polycarbonate.

Compliance and Certifications
FDA CFR21 Part 11 FCC EMC Directive CE EMC Directives Conforms to RoHS
